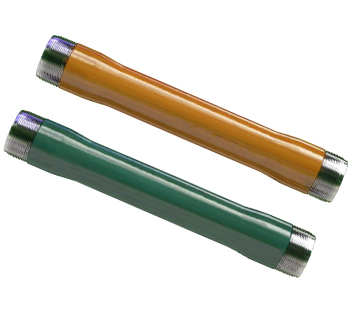

Tubing Pup Joints

We are one of the prominent Suppliers and Exporters of Tubing Pup Joints in UAE. Tubing pup joints produced according to API 5CT Specification. Our precision-engineered tubing pup Joints are ideal for spacing out down-hole assemblies and handling the production of tubing accessories. We supply tubing pup joints in all sizes and grades. All our products have passed the ISO certification and API certifications.

We are highly appreciated among our clients for providing the best quality tubing pup joints and other oilfield equipment. Our products are tested numerous times under technical guidance and are made from the best quality material. Standard and non–standard sizes are available as per customer requirements.

TECHNICAL SPECIFICATIONS:

Grades: J-55, N80-1, N80-Q, L-80, P-110.
Length: 2FT-20FT
Outer Diameter: .75" through 4.5"
Thread Type: EUE, NUE, Buttress, and Premium Connections.
Options: Custom Size, Marking, Paint, Plating, and Inspection available on request.
Wall Thickness: 4.83mm – 6.88mm.
Weight: Standard or Requested Weights.

Nominal Size	OD		Weight LB/FT		Wall Thickness		Types of end finish Grade
Nominal Size	inch	mm	NUE	EUE	inch	mm	J55	N80	L80	C90	T95	P110
2 3/8"	2.375	60.32	4.60	4.70	0.190	4.83	NU	NU	NU	NU	NU	NU
			5.80	5.95	0.254	6.45	-	NU	NU	NU	NU	NU
			7.35	7.45	0.336	8.53	-	-	U	U	U	U
2 7/8"	2.875	73.02	6.40	6.50	0.217	5.51	NU	NU	NU	NU	NU	NU
			7.80	7.90	0.276	7.01	-	NU	NU	NU	NU	NU
			8.60	8.70	0.308	7.82	-	NU	NU	NU	NU	NU
			9.35	9.45	0.340	8.64	-	-	U	U	U	-
3 1/2"	3.5	88.9	7.7	-	0.216	5.49	N	N	N	N	N	-
			9.2	9.3	0.254	6.45	NU	NU	NU	NU	NU	NU
			10.20	-	0.289	7.34	N	N	N	N	N	N
			12.70	12.95	0.375	9.52	-	NU	NU	NU	NU	NU
4"	4.00	101.6	9.5	-	0.226	5.74	N	N	N	N	N	-
4"	4.00	101.6	-	11.00	0.262	6.65	U	U	U	U	U	U
4 1/2"	4.5	114.3	12.6	12.75	0.271	6.88	NU	NU	NU	NU	NU	-

Tubing Pup Joints

Length: R1(4.88-7.62M) R2(7.62-10.36M) R3(10.36-14.63M)
