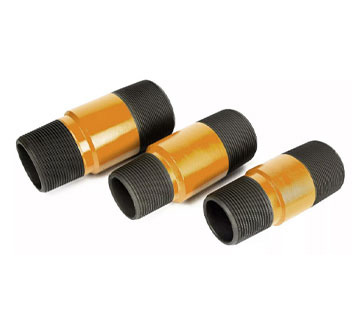

Crossover Pup Joints

Crossover Pup Joints

DIC is a Manufacturer and Exporter of Crossover Pup Joints in Ajman, UAE. It is used for crossing over from the size of a single connection to the other in the drill string. Crossover pup joints are made from a seamless mechanical tube, each piece marked with a distinctive job number and heat number fully traceable. These Pup Joints adapt the standard 3-1/2" bypass system thread to the production tubing by coupling.

Crossover Pup Joints

We supply crossover pup joints in all sizes, grades, and thread profiles. All our products have passed the ISO certification and API certifications. Our products are tested numerous times under technical guidance and are made from the best quality material.

Technical Specification:

  • Standard: API SPEC 5CT standard.
  • Grade: J55/K55, N80, L80, L80-9Cr, L80-13Cr, C90, T95, C95, P110, Q125.
  • Threads: LC, STC, BTC, EU, NU.
  • OD: 1.9",2-3/8",2-7/8",3-1/2",4",4-1/2".
  • Length: 2 3/8" --- 20".
  • Wall Thickness: 2.87mm-16.13mm.
  • Surface treatment: Outside coating.
  • Customized lengths and diameters are also available.
