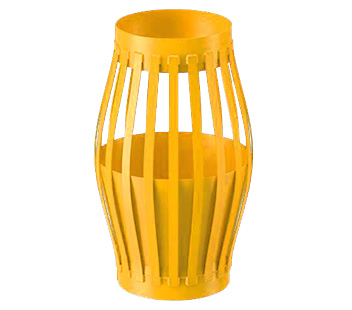

Slip on Welded Cement Basket
DIC is a Supplier and Exporter of Slip-On Welded Cement Baskets in UAE. It contains slip-on type-high strength with flexible bows mounted on an end collar.
Oilfield hinged cement baskets are easy to install around the casing. It has convex-shaped bows welded to both end collars to provide added strength and more adaptability in expansion and contraction.
Each slip-on welded cement basket is made of high-power metal to provide maximum flexibility and fluid passage while maintaining optimum support. This type of Cement Basket is available with welded and non-welded convex shape bows.
- Available in sizes 4 1/2" to 20” and any specific sizes as required by customers.
Product Specification:
| Sizes | NO. of Bows | Length | Basket O.D. | Min. Hole Size | |
|---|---|---|---|---|---|
| In. | - | - | in | mm | in |
| 4 1/2 | 10 | 24 ½ | 12 1/2 | 317.5 | 6 |
| 5 | 10 | 24 ½ | 13 | 342.9 | 6 |
| 5 1/2 | 12 | 24 ½ | 13 1/2 | 342.9 | 7 1/4 |
| 6 5/8 | 12 | 24 ½ | 14 5/8 | 371.5 | 8 3/8 |
| 7 | 14 | 24 ½ | 15 | 381 | 8 3/8 |
| 7 5/8 | 14 | 24 ½ | 15 5/8 | 396.9 | 9 1/2 |
| 8 5/8 | 16 | 24 ½ | 16 5/8 | 422.3 | 10 5/8 |
| 9 5/8 | 18 | 24 ½ | 17 5/8 | 447.7 | 11 5/8 |
| 10 3/4 | 18 | 24 ½ | 18 3/4 | 476.3 | 12 3/4 |
| 11 3/4 | 20 | 24 ½ | 19 3/4 | 501.7 | 13 3/4 |
| 11 3/8 | 24 | 24 ½ | 21 3/8 | 542.9 | 15 1/2 |
| 16 | 28 | 24 ½ | 24 | 609.6 | 18 |
| 18 5/8 | 34 | 24 ½ | 26 5/8 | 676.3 | 20 5/8 |
| 20 | 34 | 24 ½ | 28 | 711.2 | 22 |
