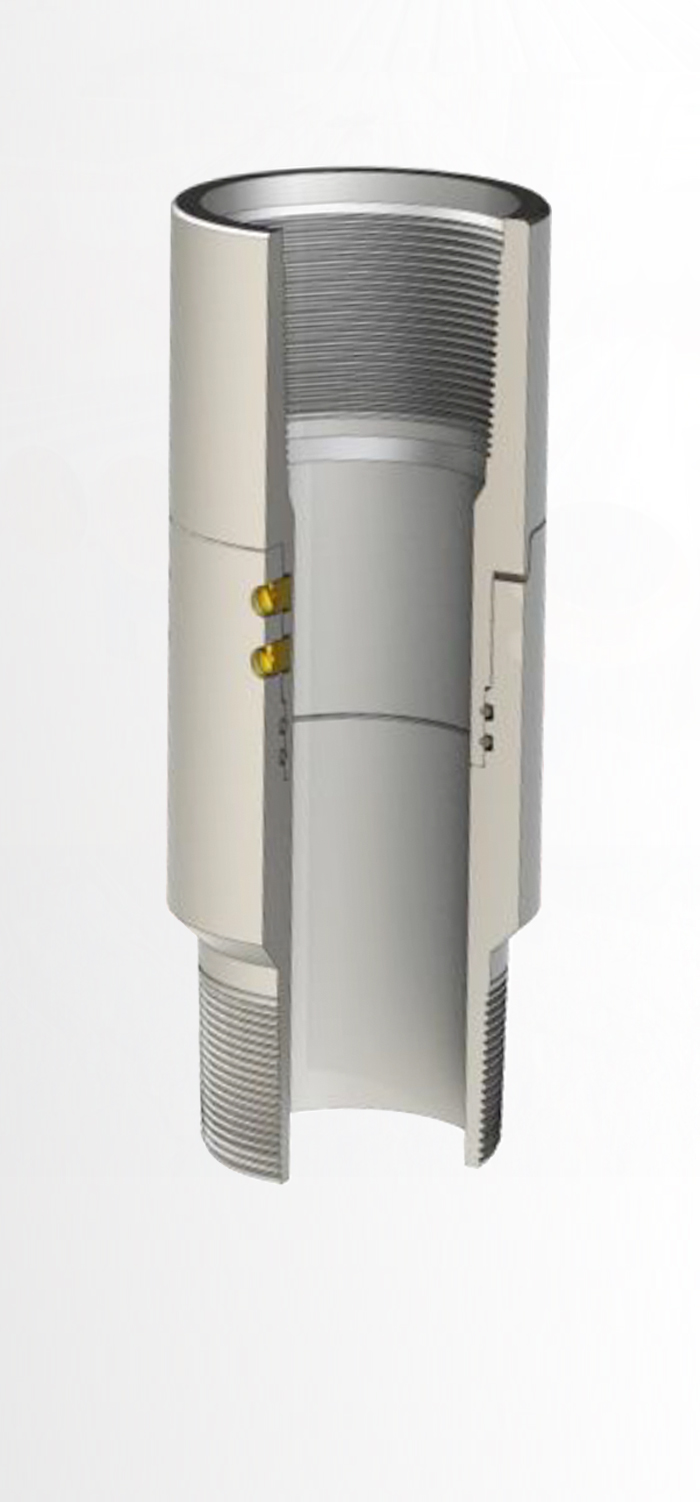

Shear Out Safety Sub
The Shear Out Safety Sub allows for positive release in the tubing string in situations where challenges in retrieval are anticipated. The Shear Out Safety Sub is used between the packers in multi-zone completions.
Features
- Standard tubing sizes
- Allows straight-pull emergency shear release
- Shear out without rotation
- Easily adjustable shear values
DATASHEET
| TOOL THREAD | TOOL SIZE | SHEAR VALUE (+/- 15%) | ||
|---|---|---|---|---|
| MM IN | OD MM IN | ID MM IN | PER KG LBS | TOTAL KG LBS |
| 60.3 2-3/8 | 77.7 3.06 | 50.6 1.99 | 2,045 4,510 | 24,540 54,120 |
| 73.0 2-7/8 | 93.2 3.67 | 63.5 2.5 | 2,045 4,510 | 24,540 54,120 |
